VS-600 External Horizontal Vacuum Packaging Machine

Our external horizontal vacuum packaging machines are crafted from food-grade SUS 304 stainless steel and designed for medium-to-small-scale packaging of bags, pouches or containers. The loading platform features an adjustable tilt angle to accommodate different product shapes and ensure optimal bag alignment.

Unlike traditional chamber machines, this unit operates with an open external-suction design - so the product size isn’t t restricted by vacuum chamber dimensions, giving you flexibility for varied packaging. The machine can configure an optional inert-gas (nitrogen) flush port available to extend shelf life.

It is mounted on heavy-duty castors for easy mobility around your workspace. Ideal for food processors, artisan producers, small packaging operations and specialty packagers who need reliable vacuum sealing in a compact, adaptable format.


Product Detail

Technology specifications

Model

VS-600

Machine Dimensions(mm)

590 × 640 × 1070

Sealer Dimensions(mm)

600×8

Power(kw)

0.75

Production Cycle

1-5 time/min

Pump Capacity(m³/h)

20

Net Weight(kg)

99

Gross Weight(kg)

135

Shipping Dimensions(mm)

600 × 713 × 1240

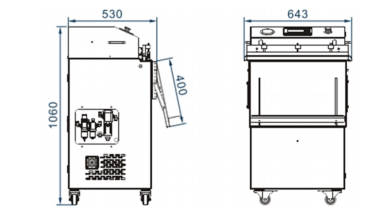

VS-6008

Technical characters

● ORMON PLC controller
● Airtac air cylinder
● It adopts the structure of single cylinder and single suction nozzle.
● Equipped with detachable worktable.
● The main body’s material is 304 stainless steel.
● Heavy-duty mobile casters are used to make it more convenient to move the machine position.
