High Quality Food Preservation Semi-automatic Vacuum Skin Packaging Machine

High Quality Food Preservation Semi-automatic Vacuum Skin Packaging Machine Featured Image
  • High Quality Food Preservation Semi-automatic Vacuum Skin Packaging Machine

Short Description:


  • Model: DJL-440VS
  • Introduction: floor-type vacuum skin packaging machine is appropriate for cooked meat, frozen fresh meat, seafood, fast meal, poultry meat, and vegetable, etc. The device applies to the PLC control system. Customers can set parameters such as raising or lowering the temperature, extending or shortening the vacuum time, etc to achieve the effect that they want. And through the control panel, we can see the working status of the machine. It is worth mentioning that our machine is very easy to operate. It can help customers stay away from tedious steps to improve efficiency.

    • Product Detail

    Product Tags

    Description

    As a large-scale semi-automatic vacuum skin packaging machine, it has a large capacity. If the dimension of the customer’s tray is large, such as 380*260*50 (mm), we can seal two trays per time. If its dimension is small, we can even seal eight trays per time. There is no doubt that the machine is more efficient compared with the small type. In addition, the mold is easy to install and detach provided that it is safe.

    Work Flow

    1

    Step1: Turn on the main switch

    2

    Step2: Set the processing parameter and the packaging temperature.

    3

    Step3: Put the tray on the mold

    4

    Step4: Click the start switch

    5

    Step5: Press both start buttons at the same time

    6

    Step6: Take the tray out.

    Vacuum Skin Advantages

    Embody product value with a strong stereoscopic impression.

    Protect the product

    Save packaging cost

    Improve packaging level

    Enhance market competitiveness

    Model

    Full Range of Vision Floor Type Vacuum Skin Packaging Machine

    Model

    DJL-330VS

    DJL-440VS

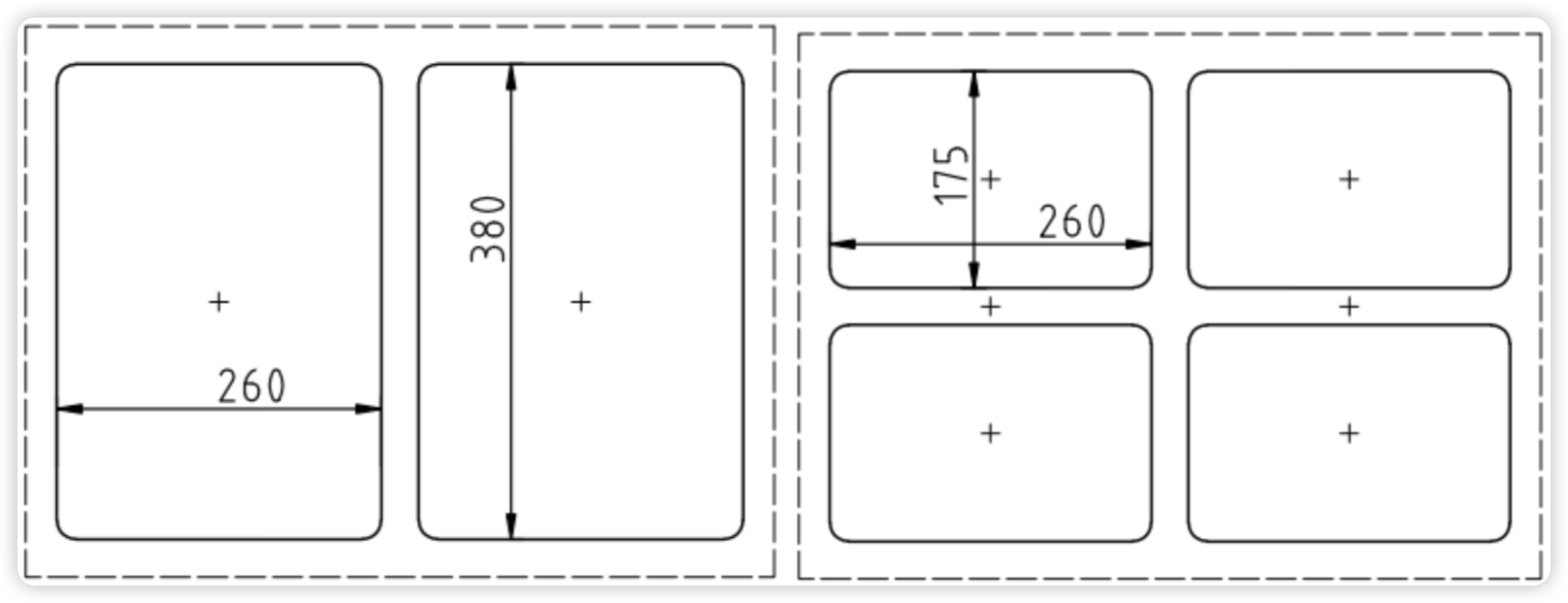

    Max. Tray Dimension

    390mm×270mm×50mm (one tray)

    270mm×180mm×50mm (two trays)

    380mm×260mm×50mm (two trays)

    260mm×180mm×50mm (four trays)

    Max. Width of Film

    320mm

    440mm

    Max. Diameter of Film

    220mm

    Packaging Speed

    3 cycle/min

    Vacuum Pump

    40m3/h

    100m3/h

    Voltage

    380V/50Hz

    Power

    2.8KW

    5.5KW

    Net Weight

    215kg

    365kg

    Gross Weight

    260kg

    415kg

    Machine Dimension

    1020mm×920mm×1400mm

    1200mm×1170mm×1480mm

    Shipping Dimension

    1050mm×1000mm×1600mm

    1290mm×1390mm×1700mm
