DZ-600 L Medium Vertical Type Vacuum Packaging Machine

Our vertical vacuum packaging machines are built from food-grade SUS304 stainless steel and engineered for the efficient sealing of upright contents—such as inner bags in drums, tall pouches, or bulk containers. Equipped with a single sealing bar, it delivers consistent, high-quality seals for every cycle while maintaining a compact, floor-standing design.

User-friendly controls allow precise adjustment of vacuum time, optional gas flush, seal time, and cool-down period—ensuring optimal results for liquids, sauces, powders, and other vertically packed materials. The vertical chamber structure minimizes spillage and simplifies loading for large or tall packages.

Mounted on heavy-duty castors for smooth mobility, this durable and practical unit offers reliable performance in industrial kitchens, food processing plants, and packaging facilities. It is available in multiple fixed models with different sealing lengths and chamber volumes, allowing users to choose the configuration that best matches their production needs

Send email to us

Product Detail

Technology specifications

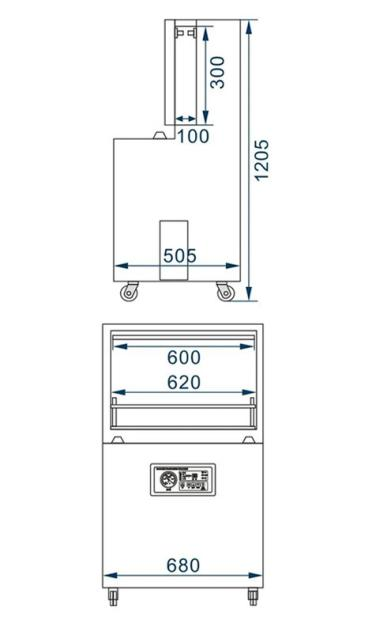

Model	DZ-600L
Machine Dimensions(mm)	680 × 505 × 1205
Chamber Dimensions(mm)	620 × 100 × 300
Sealer Dimensions(mm)	600 × 8
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.75 / 0.9
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	81
Gross Weight(kg)	110
Shipping Dimensions(mm)	740 × 580 × 1390

Technical characters

Control System: The PC control panel provides several control modes for the user's selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing perforance, so that the user may move the machine with ease.
Electrical requirements and plugs could be customized according to customer requirements.
Gas Flushing is Optional.
