DZ-1000 QF Automatic Continuous Vacuum Packaging Machine

The Automatic Continuous Type Vacuum Packaging Machines uses a cylinder to drive the conveyor track to rotate continuously, suitable for product packaging in large-scale production enterprises. It can set one or two seals in the vacuum chamber according to different specifications of the packaging material to improve work efficiency. The angle of the equipment workbench can be adjusted according to the packaging requirements of the packaging materials.


Product Detail

Technology specifications

Model

DZ-1000QF

Machine Dimensions(mm)

1510 × 1410 × 1280

Chamber Dimension (mm)

385 × 1040 × 80

Sealer Dimension (mm)

1000 × 8 × 2

Pump Capacity(m3/h)

100/200

Power Consumption(kw)

3

Voltage(V)

220/380/415

Frequency(Hz)

50/60

Production Cycle(times/min)

2-3

G.W(kg)

555

N.W(kg)

447

Shipping Dimensions(mm)

1580 × 1530 × 1420

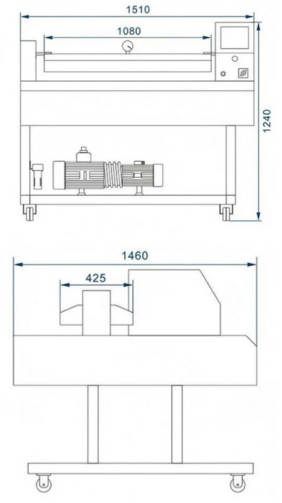

DZ-10004

Technical characters

● Control System: OMRON PLC programmable control system and human-computer interface touch screen.
● Material of Main Structure: 304 stainless steel.
● "V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
● Conveyor Belt: Dismountable conveyor belt is convenient for cleaning the machine.
● Eversible Lid: The eversible lid is convenient for the maintenance person to replace the components inside the lid easily.
● Heavy Duty Casters (With Brake): The heavy-duty casters (with brake) on the machine feature superior load bearing performance, so that the user may move the machine with ease.
● Electrical requirements and plugs could be custom according to customer requirements.
