DQ-330-T-S High Efficiency Desktop Semi-automatic Cup Sealing Machine

Induction: Semi-Automatic Tray(Cup) Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food.

Send email to us

Product Detail

Description

DQ-330-T-S is an affordable, semi-automatic, pneumatic-driven sealing machine designed for efficient packaging applications such as box and cup sealing. It features a user-friendly Omron temperature controller for precise and easy adjustment of sealing temperature, making it a cost-effective solution for non-MAP packaging processes.

Tech Characters

● Stainless steel construction

● Mould is available to be changed

● Electronic temperature controller

● Friendly and simple in operation for user

● Mould in customized dimension is acceptable to be made according to your own tray

Tech Specs

Technical Parameter of the Desktop Semi-automatic DQ-330-T-S Tray Sealer

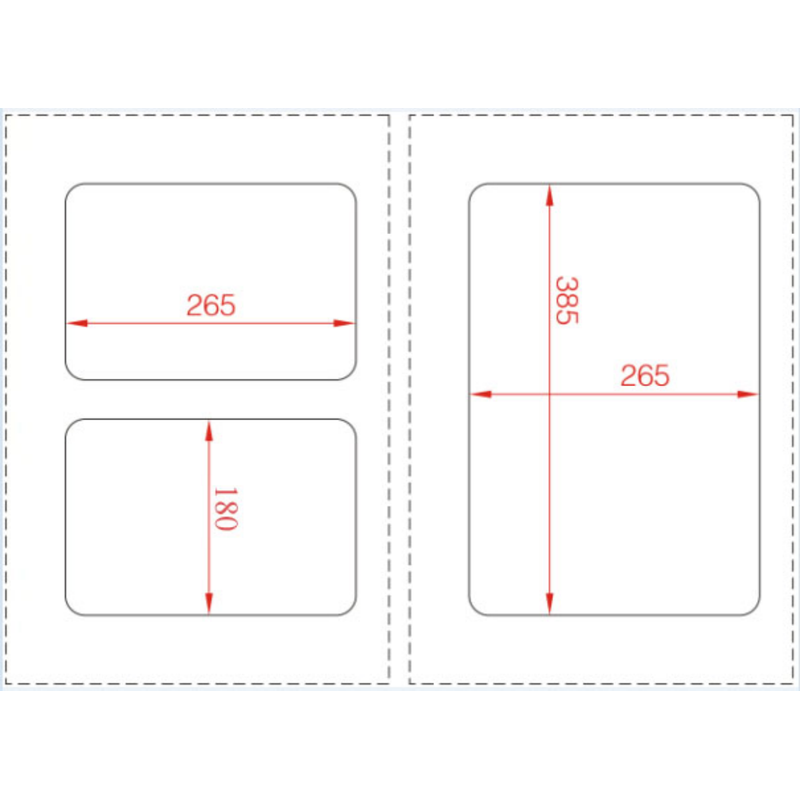

Max. Tray Dimension	385 mm×265 mm×100 mm (×1) 265 mm×180 mm×100 mm (×2)
Max. Width of Film	330 mm
Max. Diameter of Film	220 mm
Packing Speed	6-8 cycle/min
Electrical Requirement	220/50 110/60 240/50
Consume Power	1.8 KW
N.W	75 kg
G.W	133 kg
Machine Dimension	960 mm×870 mm×870 mm
Shipping Dimension	1060 mm×1030 mm×1040 mm

Max. Mould(Die Plate) Format(mm)

Model

Full Range of Semi-automatic Just Sealed Tray Sealer

Model (Semi-Auto) Just Sealed	Max. Tray Size
DQ-330-T-S	385 mm×265 mm×100 mm (×1) 265 mm×180 mm×100 mm (×2) 200 mm×140 mm×100 mm (×4)
DJL-315	310 mm×220 mm×60 mm (×1) 220 mm×140 mm×60 mm (×2)
DJL-320	390 mm×260 mm×60 mm (×1) 260 mm×180 mm×60 mm (×2)
DJL-370	310 mm×200 mm×60 mm (×2) 200 mm×140 mm×60 mm (×4)
DJL-400	230 mm×330 mm×60 mm (×2) 230 mm×150 mm×60 mm (×4)
DJL-440	380 mm×260 mm×60 mm (×2) 260 mm×175 mm×60 mm (×4)
