DZ-900 Large Floor-Type Vacuum Packaging Machine

Our floor-standing vacuum packaging machine are constructed from food-grade SUS 304 stainless steel and features a durable stainless-steel lid—offering enhanced longevity and rugged performance compared to acrylic lids. The unit is fitted with dual sealing bars, enabling faster sealing cycles and higher throughput without sacrificing seal integrity.

With intuitive controls for vacuum time, optional gas-flush, seal time and cool-down period, you maintain full control over the packaging process for meats, fish, fruits, vegetables and liquid products. By forming airtight, double-bar seals that prevent oxidation and spoilage, this machine significantly extends the shelf life of your goods.

Mounted on heavy-duty castors for mobility, it brings commercial-grade sealing power in a floor-standing footprint—ideal for small production kitchens, butcheries, cafés, artisanal food producers and light-industrial operations seeking robust, efficient packaging.

Send email to us

Product Detail

Technology specifications

Model	DZ-900

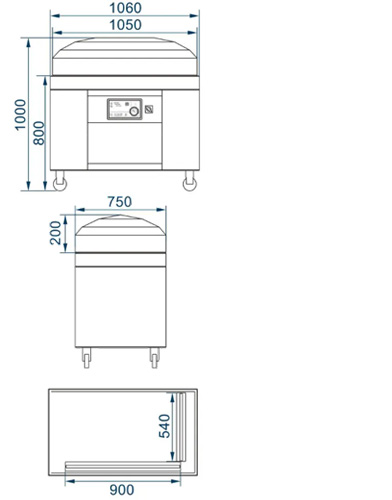

Machine Dimensions (mm)	1060 × 750× 1000
Chamber Dimensions (mm)	1040 × 680 × 200
Sealer Dimensions (mm)	540 × 8 / 900 × 8
Pump Capacity (m 3 /h)	63/100
Power Consumption (Kw)	2.2
Voltage (V)	220/380/415
Frequency (Hz)	50/60
Production Cycle (bags/min)	1--2
G.W (kg)	335
N.W (kg)	280

Technical characters

Control System: The PC control panel provides several control modes for the user's selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be customized according to customer requirements.
Gas Flushing is Optional.
