DZ-780 QF Automatic Continuous Vacuum Packaging Machine

Our automatic continuous vacuum packaging machine is purpose-built for high-volume production lines, handling large-format products with ease. Constructed from food-grade SUS 304 stainless steel and built on heavy-duty swivel castors for easy mobility, it supports industrial-scale packaging operations.

Featuring dual sealing bars, the machine enables efficient sealing of large items after automatic transfer from a waiting area on a conveyor belt into the vacuum chamber. A pneumatic cylinder mechanism raises and lowers the vacuum lid seamlessly, then the conveyor carries the sealed package onward — for example directly into a shrink tank or other downstream process.

With its inline conveyor integration, chamber automation and robust sealing design, this machine is ideal for meat processors, large food packaging lines, bulk product workflows and production plants seeking maximum throughput and reliable sealing performance in a fluid, continuous process.

Send email to us

Product Detail

Technology specifications

Model	DZ-1000QF

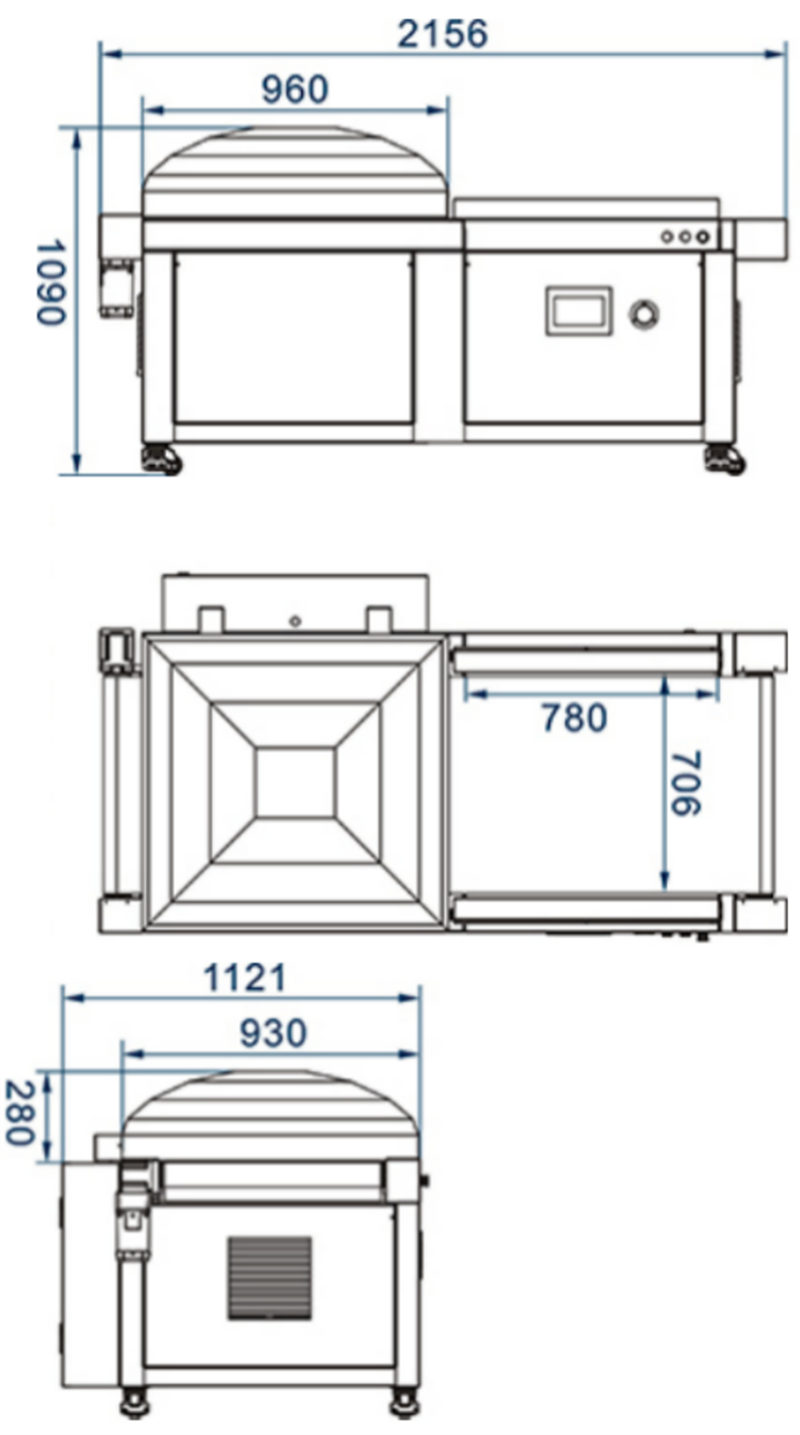

Machine Dimensions(mm)	2400 × 1200 × 1090
Chamber Dimensions(mm)	952 × 922 × 278
Sealer Dimensions(mm)	780 × 8 × 2
Pump Capacity(m3/h)	100/200/300
Power Consumption(kw)	5.0
Voltage(V)	220/380/415
Frequency(Hz)	50/60
Production Cycle(times/min)	2-3
G.W(kg)	608
N.W(kg)	509
Shipping Dimensions(mm)	2500 × 1300 × 1260

Technical characters

Control System: OMRON PLC programmable control system and human-computer interface touch screen.
Material of Main Structure: 304 stainless steel.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
High-Quality Motor and Cylinder: The machine uses high-quality motor and cylinders to maintain stable operation with minimal effort.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine feature superior load bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be custom according to customer requirements.
