DZ-460 2G Double Seal Floor-Type Vacuum Packaging Machine

Our floor-standing vacuum packaging machine is crafted from food-grade SUS 304 stainless steel and equipped with a clear acrylic lid, combining robust durability with full process visibility. Featuring dual sealing bars, it accelerates throughput while maintaining the economic footprint of a compact industrial unit.

Intuitive controls allow you to set precise vacuum time, optional gas flush, seal time and cool-down period—delivering flawless packaging for meats, fish, fruits, vegetables, sauces and liquids.

The transparent lid enables you to monitor each cycle, and built-in safety features safeguard both operator and machine. By forming airtight, double-bar sealed packages that prevent oxidation and spoilage, it significantly extends shelf life.

Mounted on heavy-duty swivel castors, it’s mobile and flexible despite its greater capacity—ideal for home kitchens, small shops, artisan producers and light-industrial food operations seeking commercial-grade sealing power in a movable, floor-standing format.


Product Detail

Technology specifications

Model DZ-460/2G
Machine Dimensions(mm) 960 x 630 x 790
Chamber Dimensions(mm) 480 x 720 x 210 (150)
Sealer Dimensions(mm) 460 x 8 x 2
Vacuum Pump(m³/h) 20/40/63
Power Consumption(kw) 0.75/0.9
Electrical Requirement(v/hz) 220/50
Production Cycle(times/min) 1-2
Net Weight(kg) 121
Gross Weight(kg) 150
Shipping Dimensions(mm) 870 × 690 × 1140

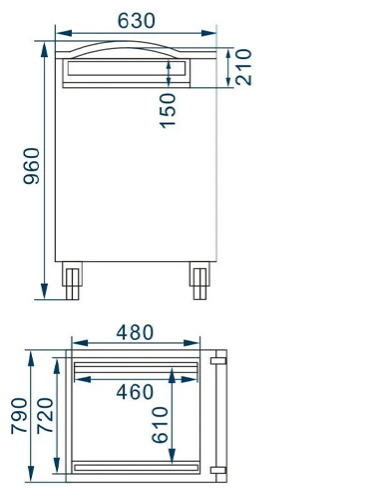

DZ-260 PD Dimension Diagram

Technical characters

  • Control System: The PC control panel provides several control modes for the user's selection.
  • Material of Main Structure: 304 stainless steel.
  • Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
  • "V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
  • Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
  • Electrical requirements and plugs could be customized according to customer requirements.
  • Gas Flushing is Optional.
