DZ-400 CD Small Floor Type Vacuum Packaging Machine

Our floor-standing vacuum packaging machine is crafted from food-grade SUS 304 stainless steel and features a clear acrylic lid for full visibility of the process. Equipped with a single sealing bar, it delivers reliable, high-quality seals while retaining an efficient footprint for floor use.

Intuitive controls allow you to set vacuum time, optional gas flush, seal time and cool-down period—ensuring perfect packaging for meats, fish, fruits, vegetables, sauces and liquids.

The transparent lid enables you to monitor each cycle, and built-in safety features safeguard both operator and machine. By forming airtight, single-bar sealed packages that prevent oxidation and spoilage, it significantly extends the shelf life of your products.

Mounted on heavy-duty swivel castors for easy mobility, this machine offers commercial-grade performance in a floor-standing format—ideal for home kitchens, small shops, cafés, artisan producers and light-industrial food operations seeking dependable sealing in a manageable footprint.

Send email to us

Product Detail

Technology specifications

Model	DZ-400CD

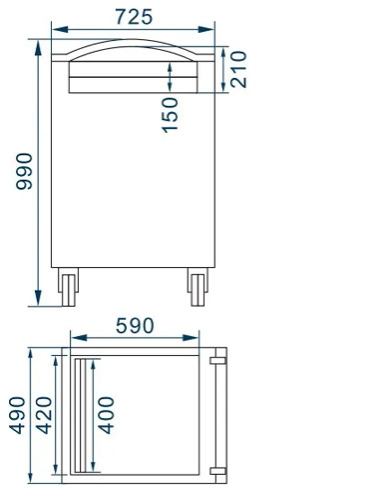

Machine Dimensions(mm)	725 x 490 x 990
Chamber Dimensions(mm)	590 x 420 x 210(150)
Sealer Dimensions(mm)	400 x 8
Vacuum Pump(m³/h)	20
Power Consumption(kw)	0.9
Electrical Requirement(v/hz)	380/50
Production Cycle(times/min)	1-2
Net Weight(kg)	93
Gross Weight(kg)	116
Shipping Dimensions(mm)	780 x 570 x 1120

Technical characters

Control System: The PC control panel provides several control modes for the user's selection.
Material of Main Structure: 304 stainless steel.
Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operator in daily work, so that they handle it with ease.
"V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
Electrical requirements and plugs could be customized according to customer requirements.
Gas Flushing is Optional.
