DZ-400 2E Double Seal Floor-Type Vacuum Packaging Machine

Our floor-standing vacuum packaging machine is crafted from food-grade SUS 304 stainless steel and equipped with a clear acrylic lid, combining robust durability with full process visibility. Featuring dual sealing bars, it accelerates throughput while maintaining the economic footprint of a compact industrial unit.

Intuitive controls allow you to set precise vacuum time, optional gas flush, seal time and cool-down period—delivering flawless packaging for meats, fish, fruits, vegetables, sauces and liquids.

The transparent lid enables you to monitor each cycle, and built-in safety features safeguard both operator and machine. By forming airtight, double-bar sealed packages that prevent oxidation and spoilage, it significantly extends shelf life.

Mounted on heavy-duty swivel castors, it’s mobile and flexible despite its greater capacity—ideal for home kitchens, small shops, artisan producers and light-industrial food operations seeking commercial-grade sealing power in a movable, floor-standing format.

Send email to us

Product Detail

Technology specifications

Model	DZ-400/2E

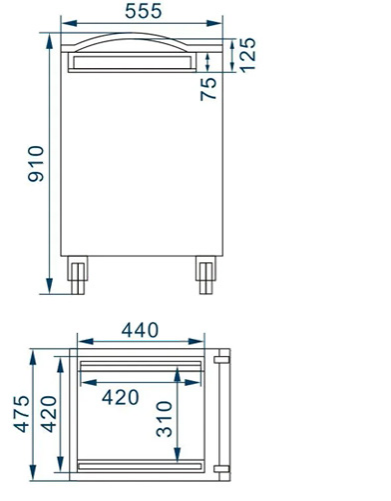

Machine Dimensions(mm)	555 x 475 x 910
Chamber Dimensions(mm)	440 x 420 x 125 (75)
Sealer Dimensions(mm)	420 x 8 x 2
Vacuum Pump(m3/h)	20
Power Consumption(kw)	0.75
Electrical Requirement(v/hz)	220/50
Production Cycle(times/min)	1-2
Net Weight(kg)	79
Gross Weight(kg)	95
Shipping Dimensions(mm)	610 × 530 × 1050

Technical characters

● Control System: The PC control panel provides several control modes for user selection.

● Material of Main Structure: 304 stainless steel.
● Hinges on Lid: The special labor-saving hinges on the lid markedly reduce the labor intensity of operators in dally work, so that they handle it with ease.
● "V" Lid Gasket: The "V" shaped vacuum chamber lid gasket made of high-density material guarantees the sealing performance of the machine in routine work. The compression and wearing resistance of the material extends the service life of the lid gasket and reduces its changing frequency.
● Heavy Duty Casters (With Barke): The heavy-duty casters (with brake) on the machine features superior load-bearing performance, so that the user may move the machine with ease.
● Electrical requirements and plug could be custom according to customer requirements.
● Gas Flushing is Optional.
