DJL-320V Food Fresh Keeping MAP Tray Sealer

Induction: With the development of the packaging industry, the common sealing package has not met a part of people’s demand. They want to extend their products’ expiration date, so MAP, which is called Modified Atmosphere Packaging, can replace inside air with nitrogen or carbon dioxide, to achieve the fresh-keeping result.

Send email to us

Product Detail

Description

MAP tray sealer can match different gas mixers. According to the difference of foods, people can adjust the gas ratio to minimize bacterial growth and realize the fresh-keeping effect. It is widely applicable to the package of raw and cooked meat, seafood, fast food, dairy product, bean product, fruit and vegetable, rice, and flour food.

Work Flow

Step1: Insert the gas conduit and turn on the main switch

Step2: Pull the film to position

Step3: Put the goods into the tray.

Step4: Set the processing parameter and the packaging temperature.

Step5: Press the “on” button, and press the “start” button together.

Step6: Take the tray out

Advantages

● Minimize bacterial growth

● Fresh Kept

● Quality extended

● Color and shape ensured

● Taste retained

Tech Specs

Technical Parameter of the MAP Tray Sealer DJL-320V

Max. Tray Dimension	390 mm×260 mm×60 mm (×1)260 mm×180 mm×60 mm (×2)
Max. Width of Film	320 mm
Max. Diameter of Film	240 mm
Packing Speed	3-4 cycle/min
Air Exchanging Rate	≥99 %
Electrical Requirement	3P 380V/50Hz
Consume Power	2.4 KW
N.W	145 kg
G.W	175 kg
Machine Dimension	1020 mm×920 mm×1400 mm
Shipping Dimension	1220 mm×1120 mm×1600 mm
Vacuum Pump Capacity	20 m³/h

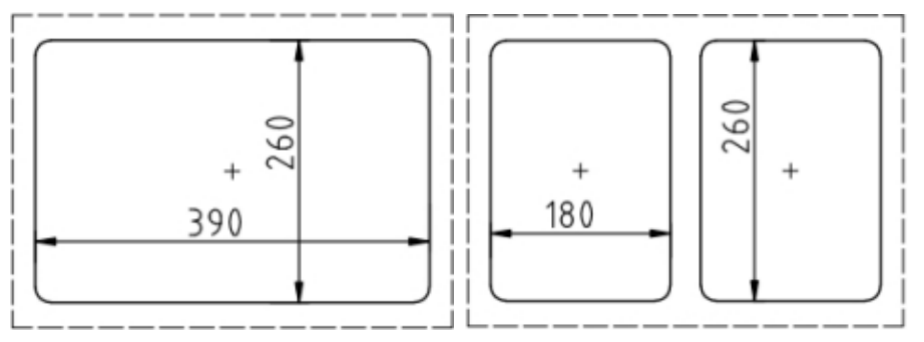

Max. Mould(Die Plate) Format(mm)

Model

Full Range of Vision MAP Tray Sealer

Model	Max. Tray Size
DJL-315G (Airflow Replacement)	310 mm×220 mm×60 mm (×1) 220 mm×140 mm×60 mm (×2)
DJL-315V (Vacuum Replacement)	310 mm×220 mm×60 mm (×1) 220 mm×140 mm×60 mm (×2)
DJL-320G (Airflow Replacement)	390 mm×260 mm×60 mm (×1) 260 mm×180 mm×60 mm (×2)
DJL-320V (Vacuum Replacement)	390 mm×260 mm×60 mm (×1) 260 mm×180 mm×60 mm (×2)
DJL-370G (Airflow Replacement)	310 mm×200 mm×60 mm (×2) 200 mm×140 mm×60 mm (×4)
DJL-370V (Vacuum Replacement)	310 mm×200 mm×60 mm (×2) 200 mm×140 mm×60 mm (×4)
DJL-400G (Airflow Replacement)	230 mm×330 mm×60 mm (×2) 230 mm×150 mm×60 mm (×4)
DJL-400V (Vacuum Replacement)	230 mm×330 mm×60 mm (×2) 230 mm×150 mm×60 mm (×4)
DJL-440G (Airflow Replacement)	380 mm×260 mm×60 mm (×2) 260 mm×175 mm×60 mm (×4)
DJL-440V (Vacuum Replacement)	380 mm×260 mm×60 mm (×2) 260 mm×175 mm×60 mm (×4)
